ME150 Semi-automatic heat cutting machine
  • ME150 Semi-automatic heat cutting machine

  • product description
  • The DL-RQ-M150 heat cutting machine is an essential component of the electronic ceramic LTCC (Low-Temperature Co-Fired Ceramic) production line for slicing. It is used to cut well-stacked green bodies according to cutting lines into mosaic or continuous array products before sintering. Only after the heat cutting machine has performed the online cutting according to the specified size and specifications can the products enter the high-temperature furnace for sintering. The green tape produced after hot cutting is free from scatter, without burnt edges, and remains continuous without breaking, thus achieving exceptionally high-quality results as required.

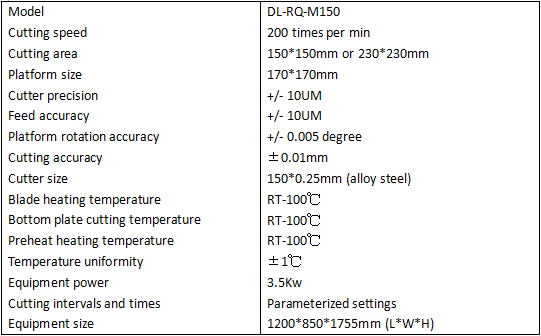

    Technical reference:
